SFS Intec Anuba 3-DIM Door Hinge Size 15, Band height 112 mm, Bolt 60 mm, Steel galvanized silver

SFS Intec Anuba 3-DIM hinge 2-piece size 15, band height 112 mm, bolt 60 mm, steel zinc plated silver

• Material: band part made of steel, running area made of hardened steel, with maintenance-free sliding bearing
• Surface: zinc plated silver color
• Anuba 3-DIM hinge size 15
• Usage: for rebated wooden doors on wooden frames and lining frames
• SFS Intec Type: Anuba
• Direction: universal
• Design: standard
• SFS Intec brand quality

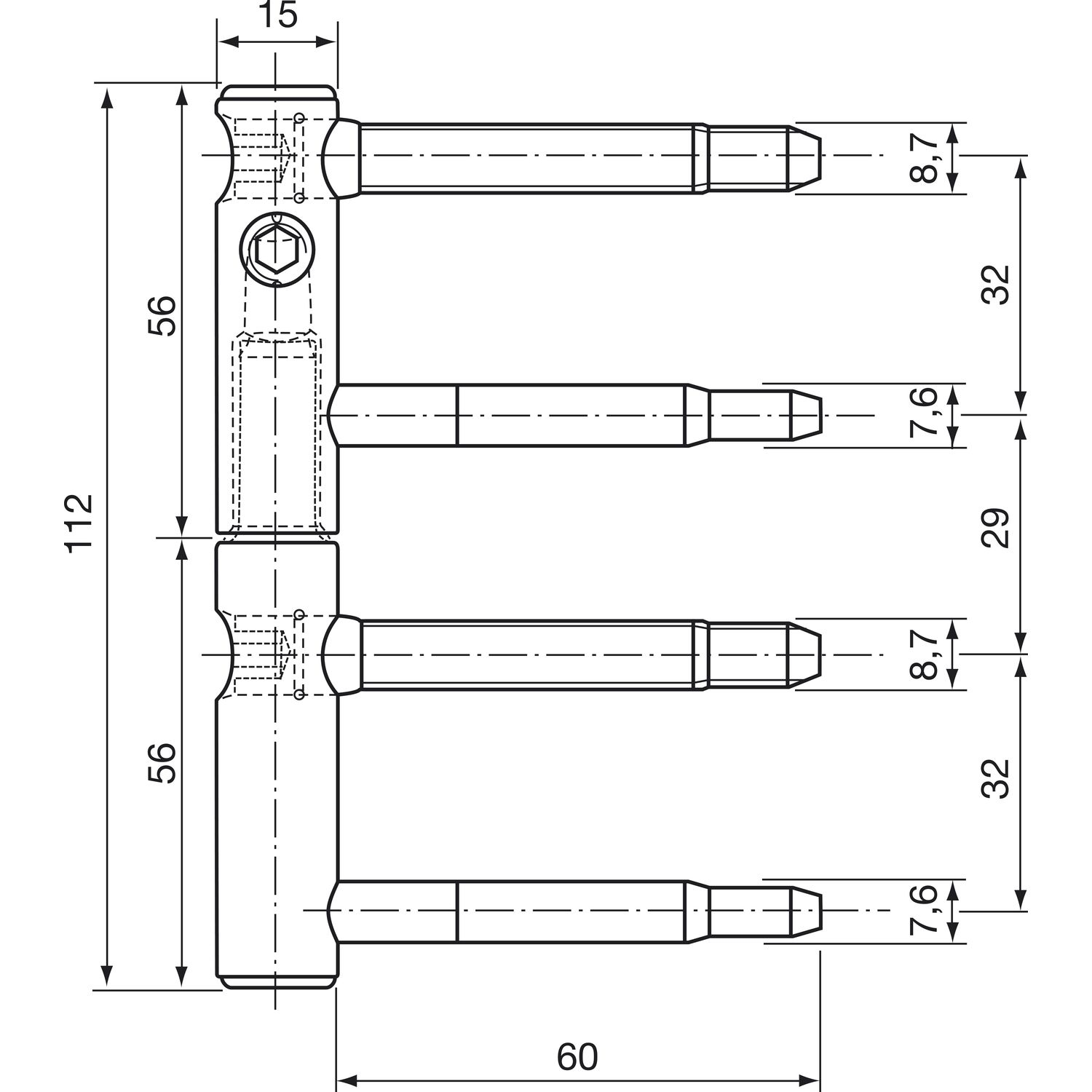

• Band Ø: 15 mm
• Band height: 112 mm
• Axis distance: 32 mm
• Bolt thickness: 7.6 mm
• Bolt length: 60 mm
• Threaded bolt: 8.7 mm
• Pin security: without detachable pin
• Load capacity: 46 kg

Application area:

• for rebated wooden doors on wooden frames and lining frames
• Accessories: in our range we offer you a wide selection of various mounting sleeves (Category: Mounting sleeves)
• Note: the specified load capacity applies to 2 door hinges

Unit of quantity:

• per 1 piece
