Häfele Cabinet Hinge Duomatic Stile Hinge Drilling Pattern 48/6 mm
- Häfele Duomatic hinge
- with automatic closing mechanism
- Please select the version
- Order number: 1005231
- Manufacturer No.: 329.34.601
Häfele Cabinet Hinge Duomatic Stile Hinge Drilling Pattern 48/6 mm
Häfele Topfscharnier Duomatic Stollenscharnier zum Schrauben
- Häfele brand quality
- high-quality Duomatic stollenscharnier
- stable and robust screw-on hinge
- Mounting pattern: 48/6 mm
- Drilling depth: hinge cup 11 mm
- with self-closing mechanism - prevents unintentional opening of the cabinet door
- Material: cup made of steel, hinge arm made of zinc die-cast
- Surface: nickel-plated
Design: (please select)
- for small stolls - opening angle 94°
- for standard stolls - opening angle 94°
- for long stolls - opening angle 110°
Installation:
- Attach door to cabinet with Duomatic A mounting plates or quick installation with Duomatic SM mounting plates
- Note: Mounting plates are not included in delivery
Adjustment options:
- Side adjustment up to +4.5 mm
- Height adjustment from -2 to +2 mm
- Depth adjustment with Duomatic A mounting plates +2.8 mm, with Duomatic SM mounting plates from -0.5 to +2.8 mm
Unit of quantity
- per 1 piece of hinge (without mounting plate and screws)
Frequently asked question on "Häfele Cabinet Hinge Duomatic Stile Hinge Drilling Pattern 48/6 mm"
New question for this article ...
New question for this article ...
Reviews
Reviews
No Reviews yet. Be the first to Review!
Write an evaluation
Evaluations will be activated after verification.
Similar products
Häfele Furniture Foot H3907 with Height Adjustment with Aluminum Plate
Aluminium
From €30.50
*
In stock
Häfele furniture leg H3914 aluminum without height adjustment with plate 50 - 200 mm
Aluminium
From €12.90
*
In stock
Häfele Furniture Leg H3909 Stainless Steel without Height Adjustment with Plate
Edelstahl
From €29.50
*
In stock
Häfele Table Leg Rondella made of stainless steel, cylindrical, straight
Edelstahl
€75.90
*
In stock
Häfele Table Leg made of Aluminum, Square, Straight with Concealed Mounting
Aluminium
From €61.50
*
In stock
Häfele door damper Smove for installation in/on upper floor or lower floor on the hinge side
Kunststoff
€5.19
*
In stock
Häfele door damper Smove for installation in/on side panel opposite the hinge side
Kunststoff
€4.44
*
In stock
Häfele cross-adapter plate for door damper Smove for screwing with chipboard screws
Kunststoff
€0.58
*
In stock
Häfele cross adapter plate for door damper Smove for screwing with euro screws
Kunststoff
€0.58
*
In stock
Häfele Furniture Handle H1012 Arch Handle Aluminum Silver Anodized Drilling Distance 96 mm
Aluminium
€4.01
*
In stock
Häfele Furniture Handle H10110 Arc Handle, Nickel Plated and Polished, Made of Steel
Stahl
From €2.50
*
In stock
Customers also bought
Häfele Cross Mounting Plate Duomatic A Distance 9 mm Push-to-open Technology Euro Screws Pre-assembled
Zinkdruckguss
€1.81
*
In stock

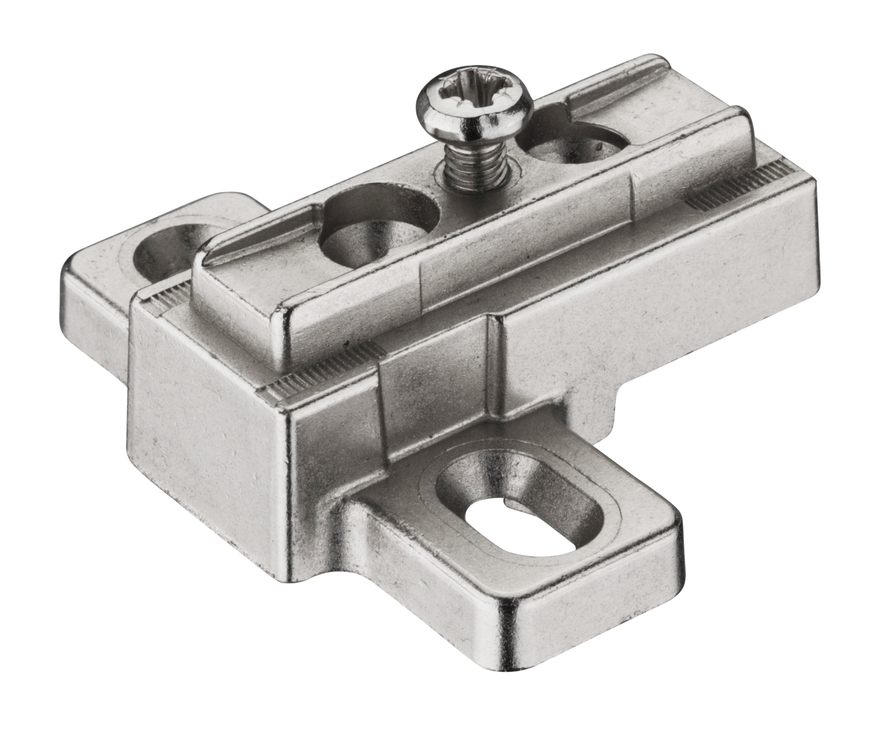

Häfele Cross Mounting Plate Duomatic SM for Screw Mounting with Pre-assembled Euro Screws
